Digital Hybrid Manufacturing: Precision & Efficiency with 2onelab & CIMSystem
Discover how Ewert Zahntechnik achieves a precise workflow for high-quality telescopic restorations using the digital hybrid solution from 2oneLab and CIMSystem. This solution offers flexibility, precision, and economic advantages compared to conventional or purely additive methods.
Sie sehen gerade einen Platzhalterinhalt von YouTube. Um auf den eigentlichen Inhalt zuzugreifen, klicken Sie auf die Schaltfläche unten. Bitte beachten Sie, dass dabei Daten an Drittanbieter weitergegeben werden.
Mehr InformationenInitial Situation
Ewert Zahntechnik, based in Soest, Germany, is an innovative dental laboratory specializing in high-end prosthetic solutions. To meet the growing demands for precision, repeatability, and cost-efficiency, the company decided to implement a hybrid manufacturing workflow—comprising the 2Create metal 3D printing system from 2onelab and the Make&Mill CAD/CAM solution from CIMSystem.
Objective
Hybrid Workflow Solution
By combining the 2Create metal 3D printer and Make&Mill CAD/CAM software, a fully integrated hybrid workflow (3D printing and miling) could be implemented.
Hybrid Workflow
Further Elements for the Hybrid Workflow by 2onelab
For a complete digital dental workflow, Ewert Zahntechnik also implemented additional components from the 2oneLab ecosystem to streamline the production process and ensure maximum efficiency, repeatability, and precision:
- 2Build (CAM software),
- 2Connect (web-based monitoring app),
- 2Sieve (ultrasonic sieving system),
- 2Clean (cleaning system),
- and Glow Cube HTS-2/Metal Glow-120+ (furnace)

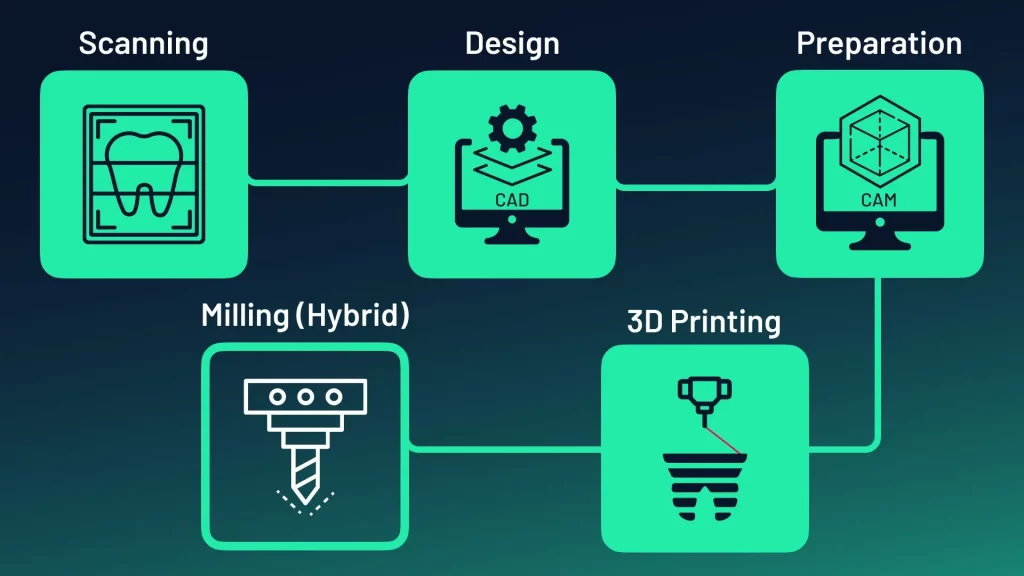

Hybrid Workflow - Step by Step
1. Scan
Digitalization of the Patient Model – Foundation for CAD Design
Learn More

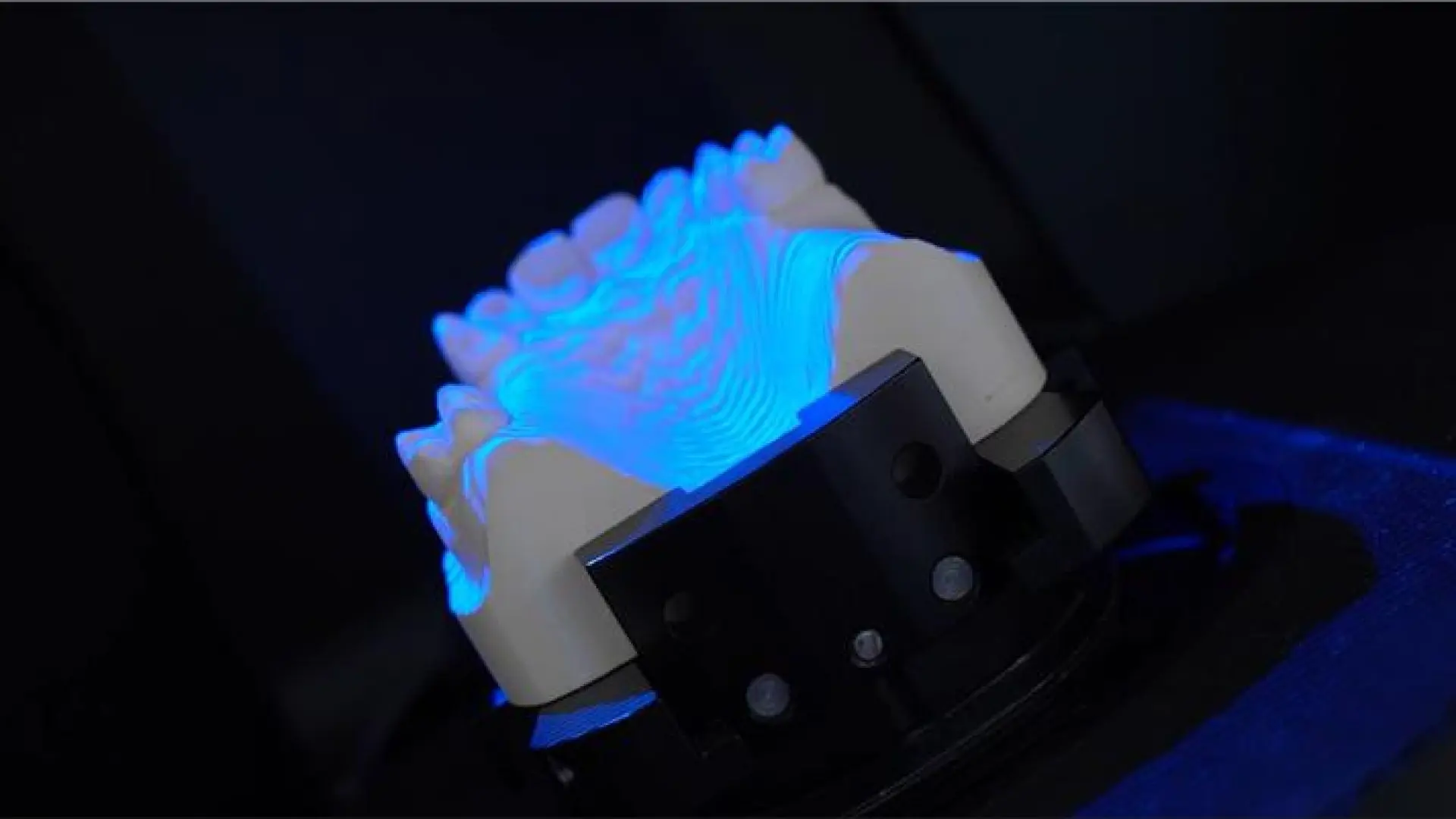

– At the beginning, the patient’s physical model – such as a plaster model or an intraoral scan – is digitized using a 3D scanner. This step is essential for capturing the exact geometry of the oral situation and transferring it into the digital workflow.
– The resulting digital model (usually in STL format) then serves as the basis for the CAD design of the dental restoration.
2. Design
Digital Design for Precise Hybrid Manufacturing – CAD + Make&Mill Software
Learn More

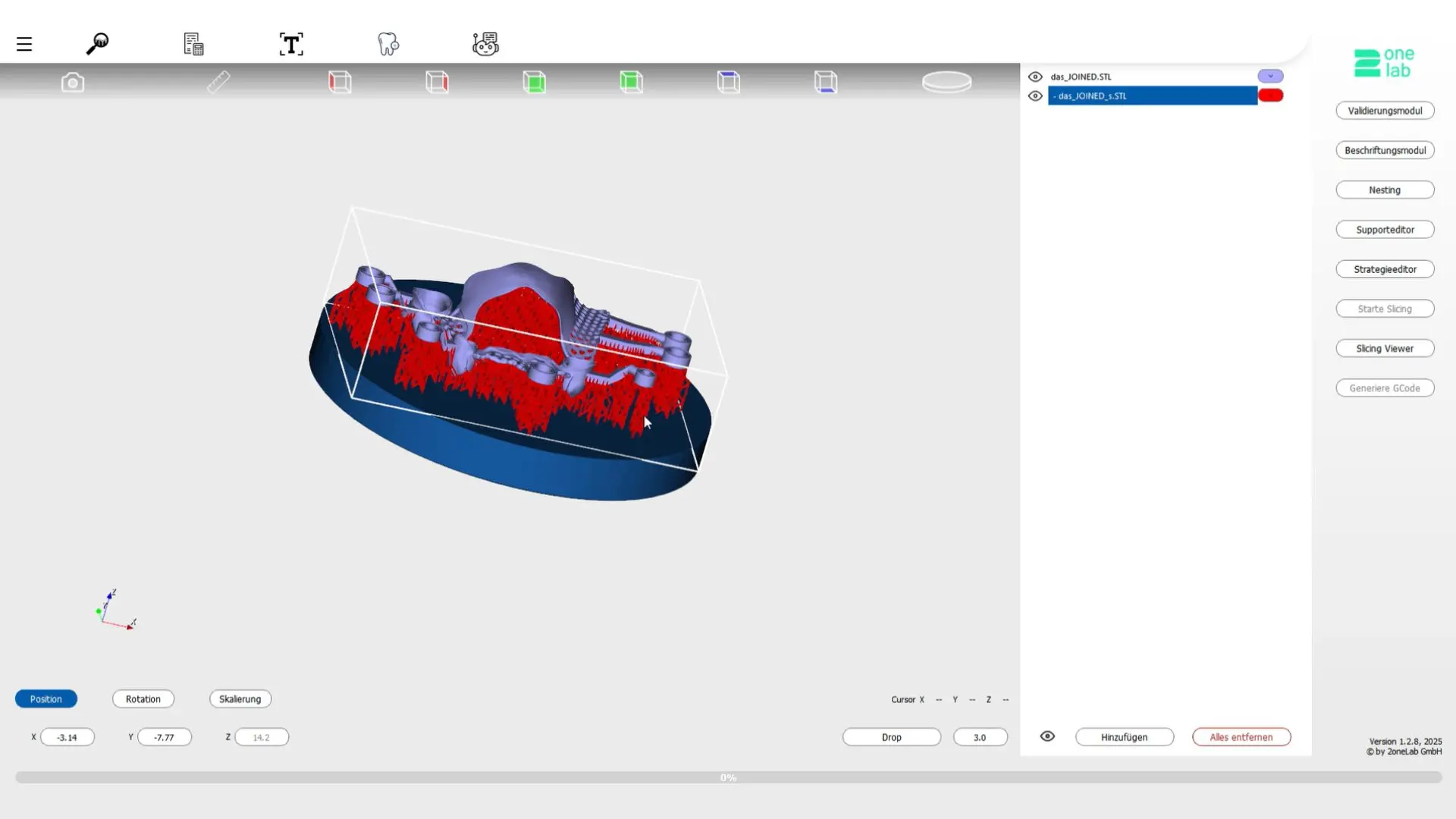

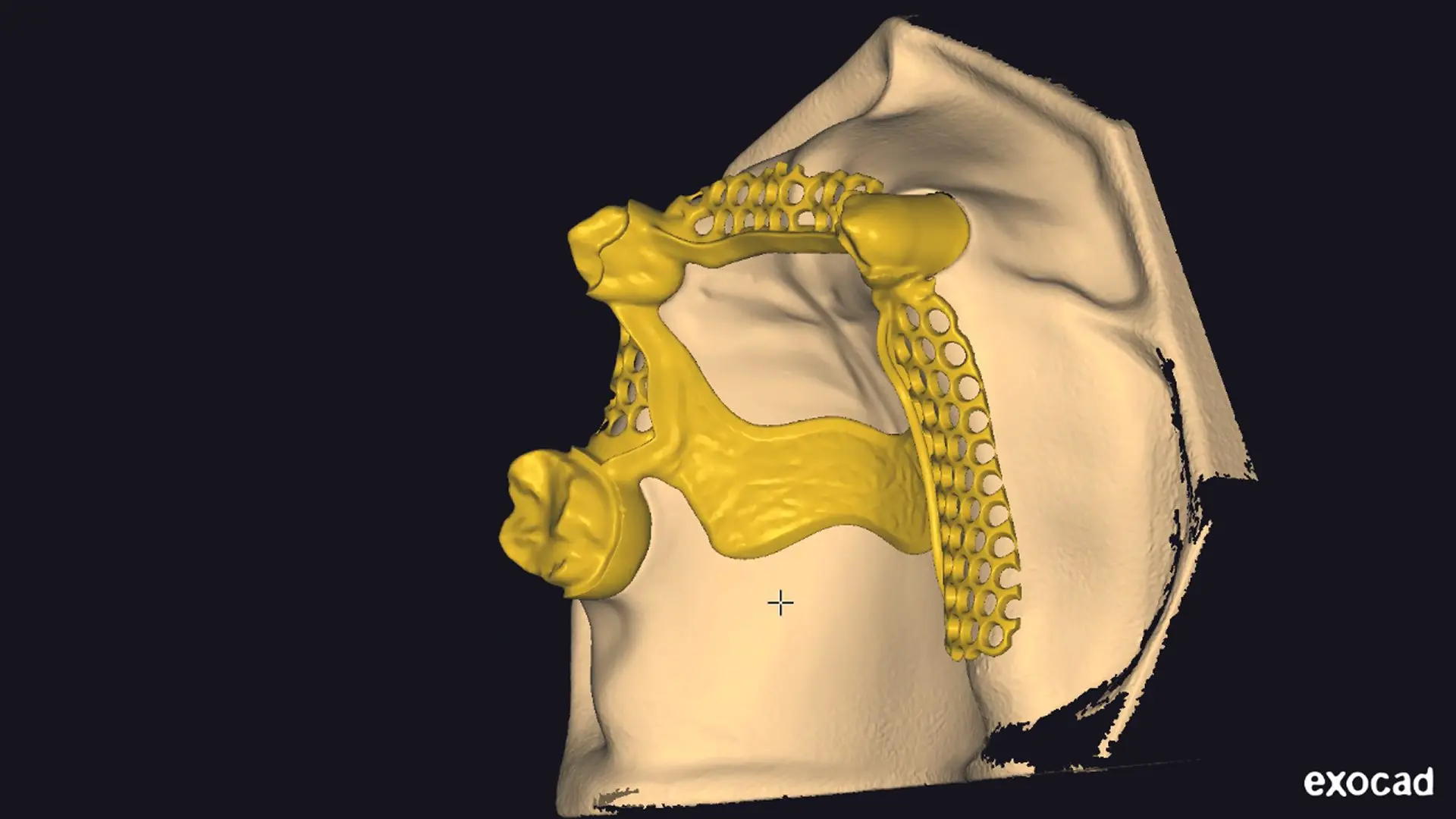

– The telescope prostheses are initially digitally designed using a CAD system such as exocad or SilaParts. (Picture 1)
– The completed design is then exported in STL format and imported into CIMSystem’s Make&Mill software.

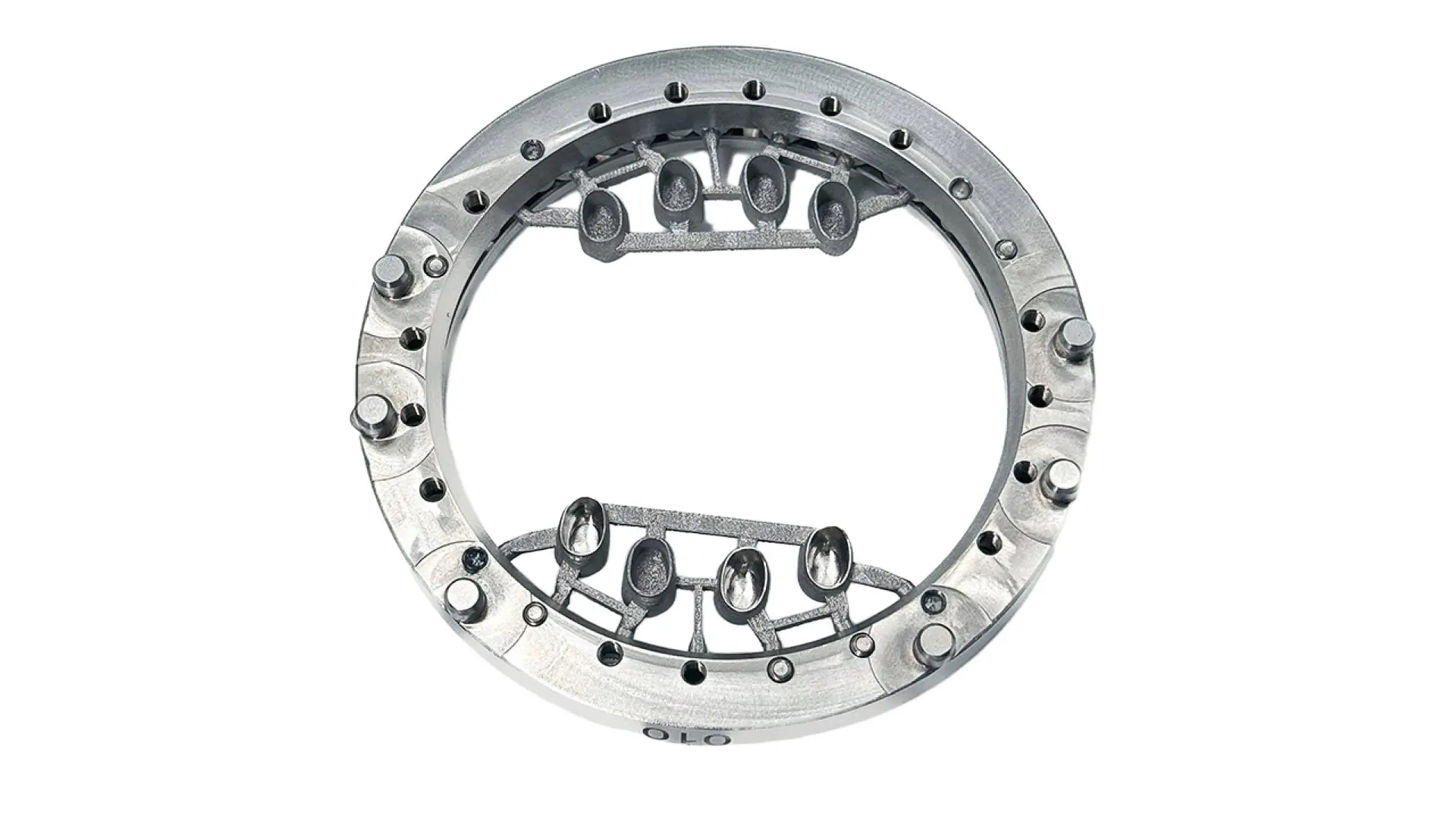

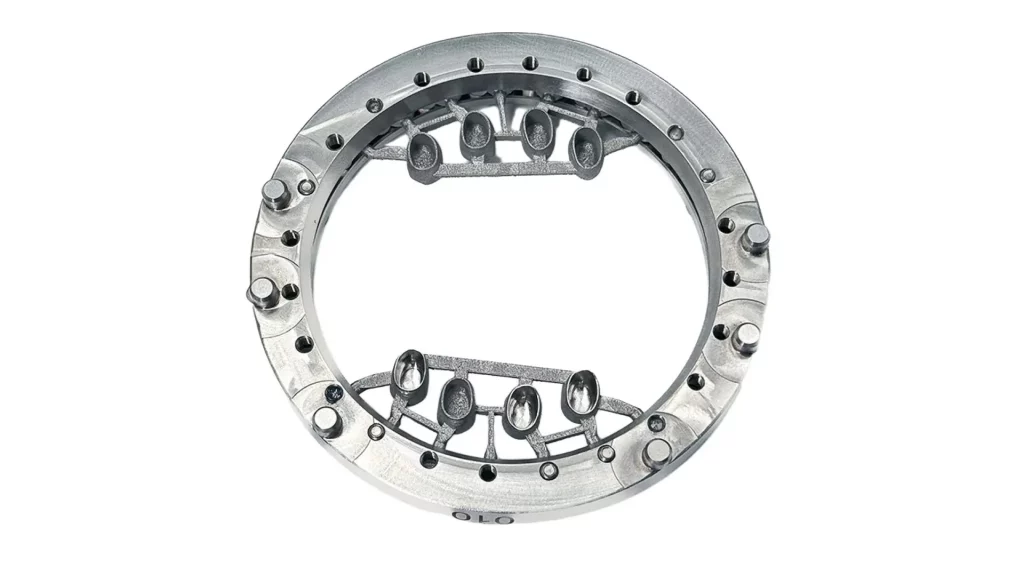

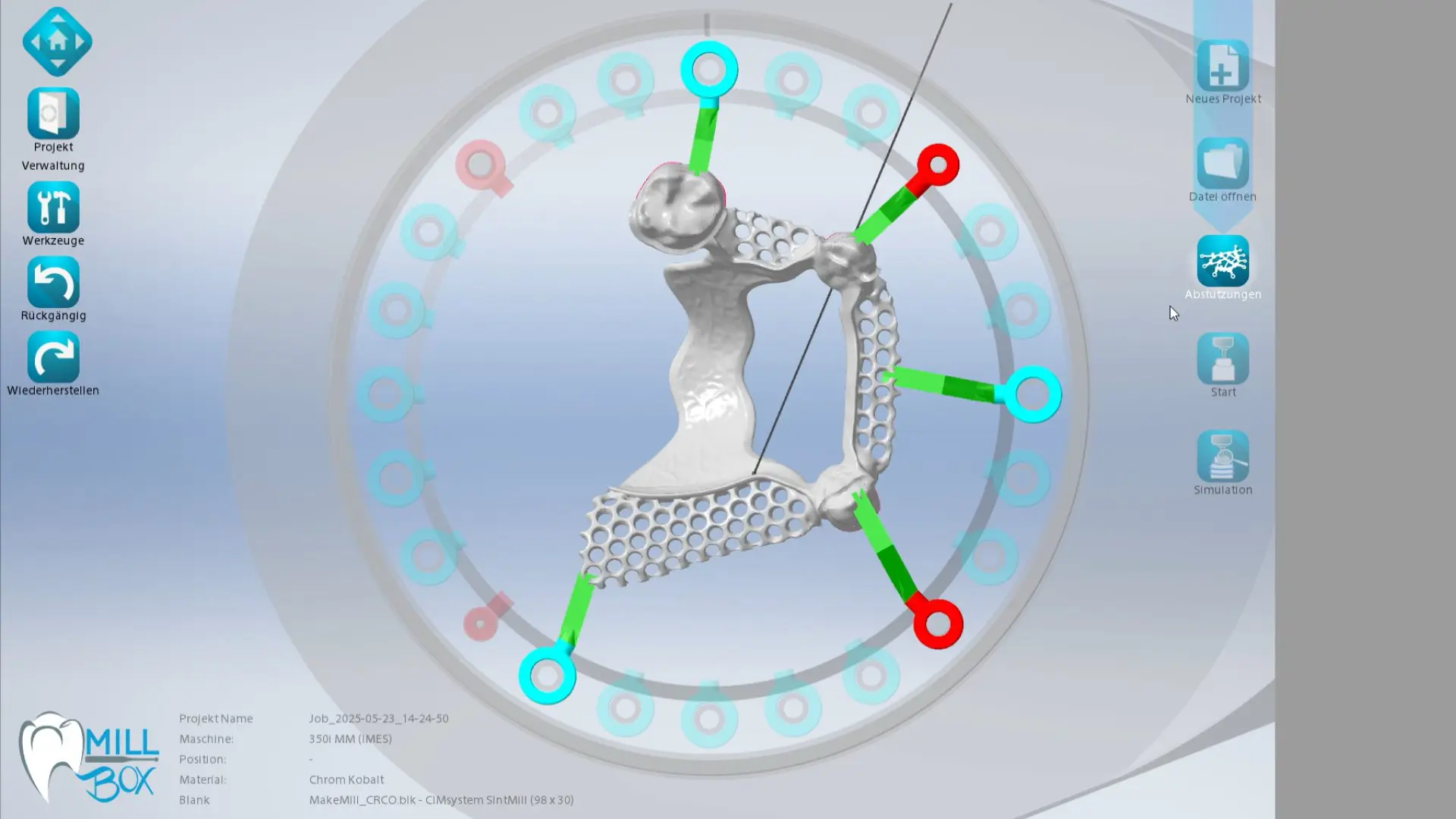

– Special support bridges are then designed on the component. These ensure precise positioning on the milling machine’s fixture and enable reproducible alignment for the subsequent hybrid manufacturing process. (Picture 2)
3. Preparation
Preparation for 3D Printing – 2Build CAM
Learn More
– After designing in Make&Mill, the file is transferred to the 2Build CAM software, where the build job is created. The model is sliced, and the necessary machine parameters and G-code are generated.
– The completed build job is then sent to the 2Create metal 3D printer, where the additive manufacturing process (selective laser melting) begins.
4. Production / Metal 3D Printing
Printing the Part with 2Create
Learn More

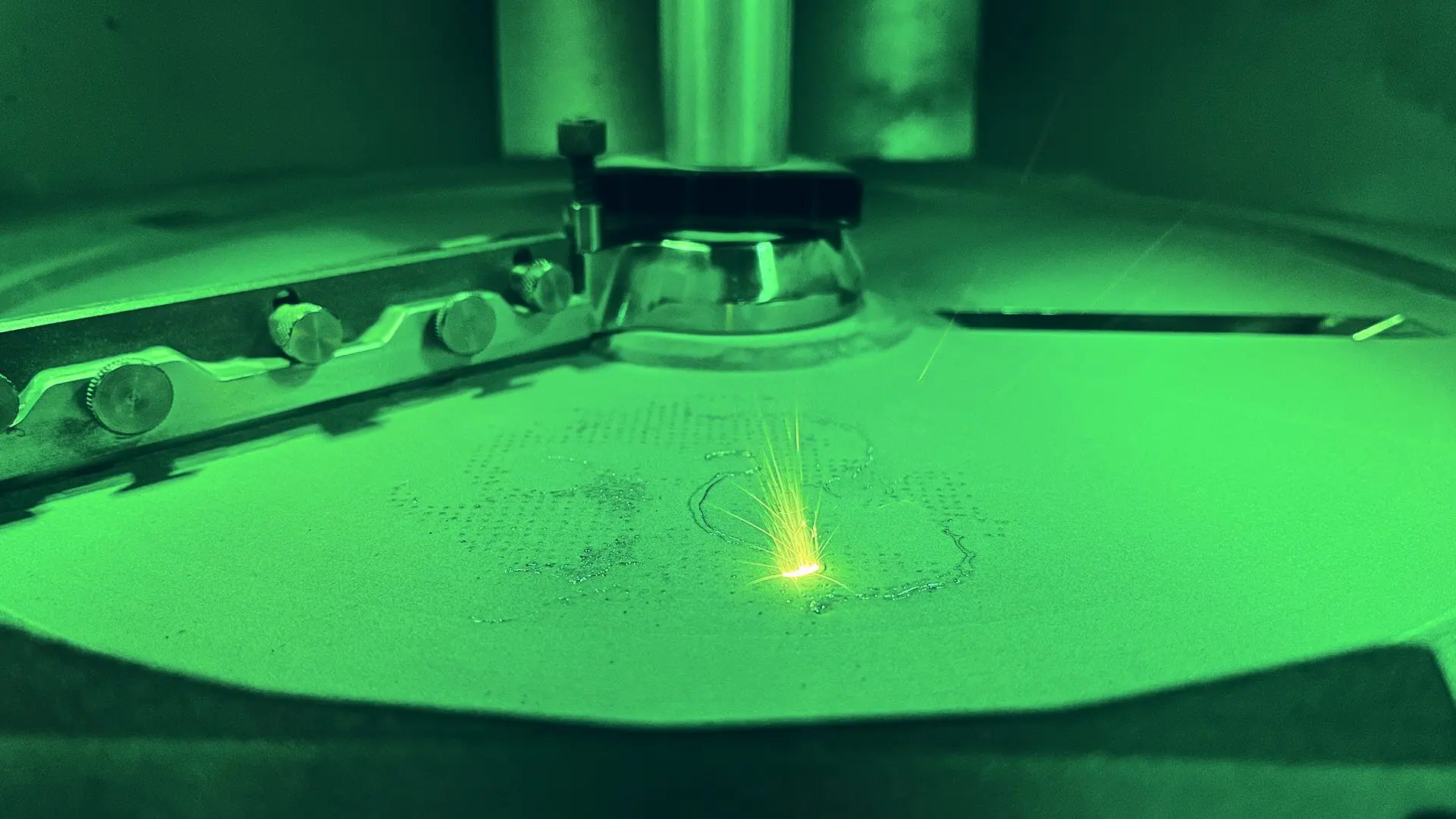

– The build job is constructed layer by layer in the 2Create metal 3D printer, resulting in the metallic structure of the part with high dimensional accuracy and fine detail.
+ Post-Processing
Heat Treatment
Learn More

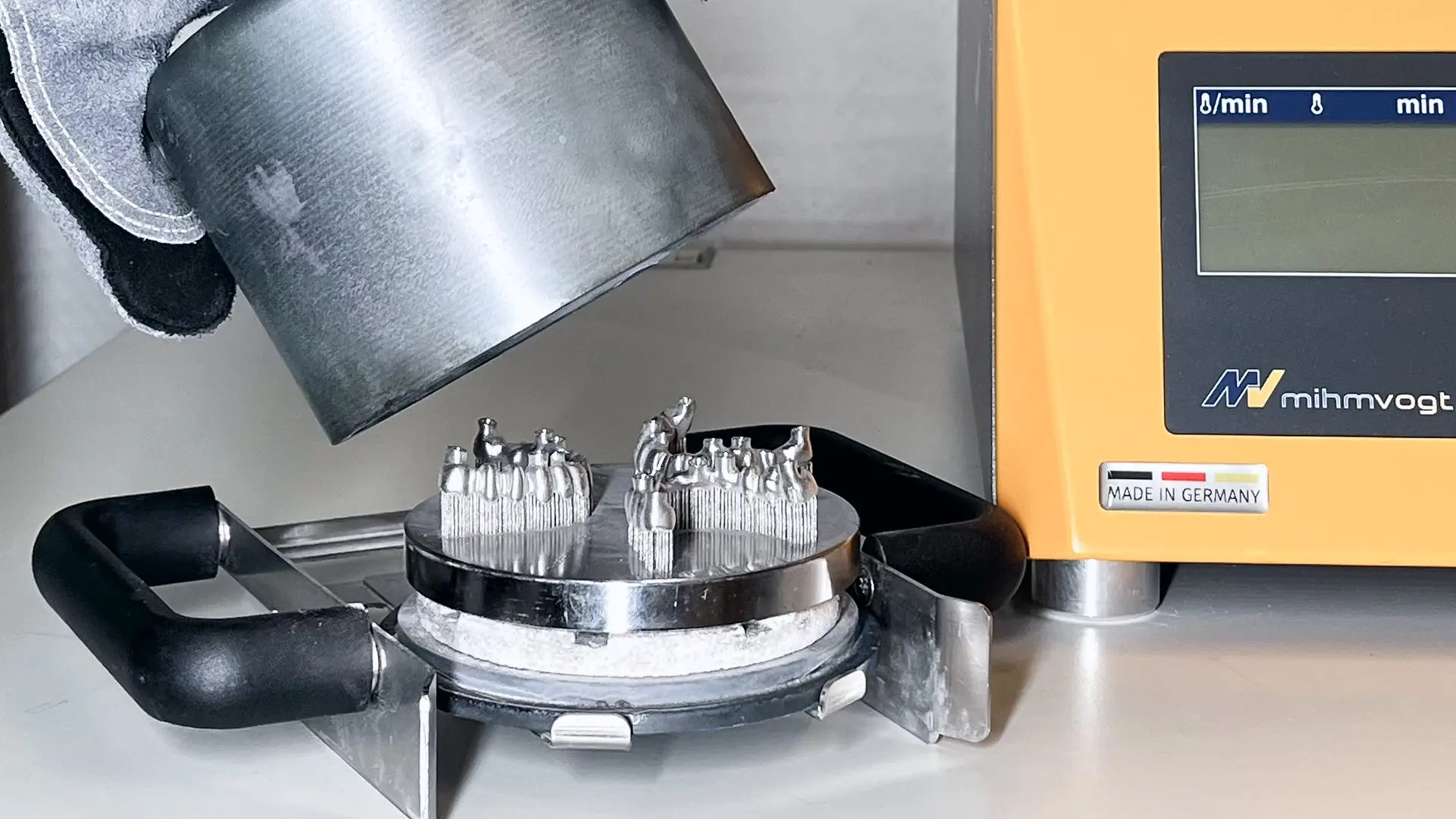

– After printing, the part undergoes heat treatment to eliminate internal stresses (residual stresses). This step is essential to prevent material warping and deformation during subsequent processing.
5. Milling Process
Precise Milling of the Part in the Make&Mill Fixture
Learn More

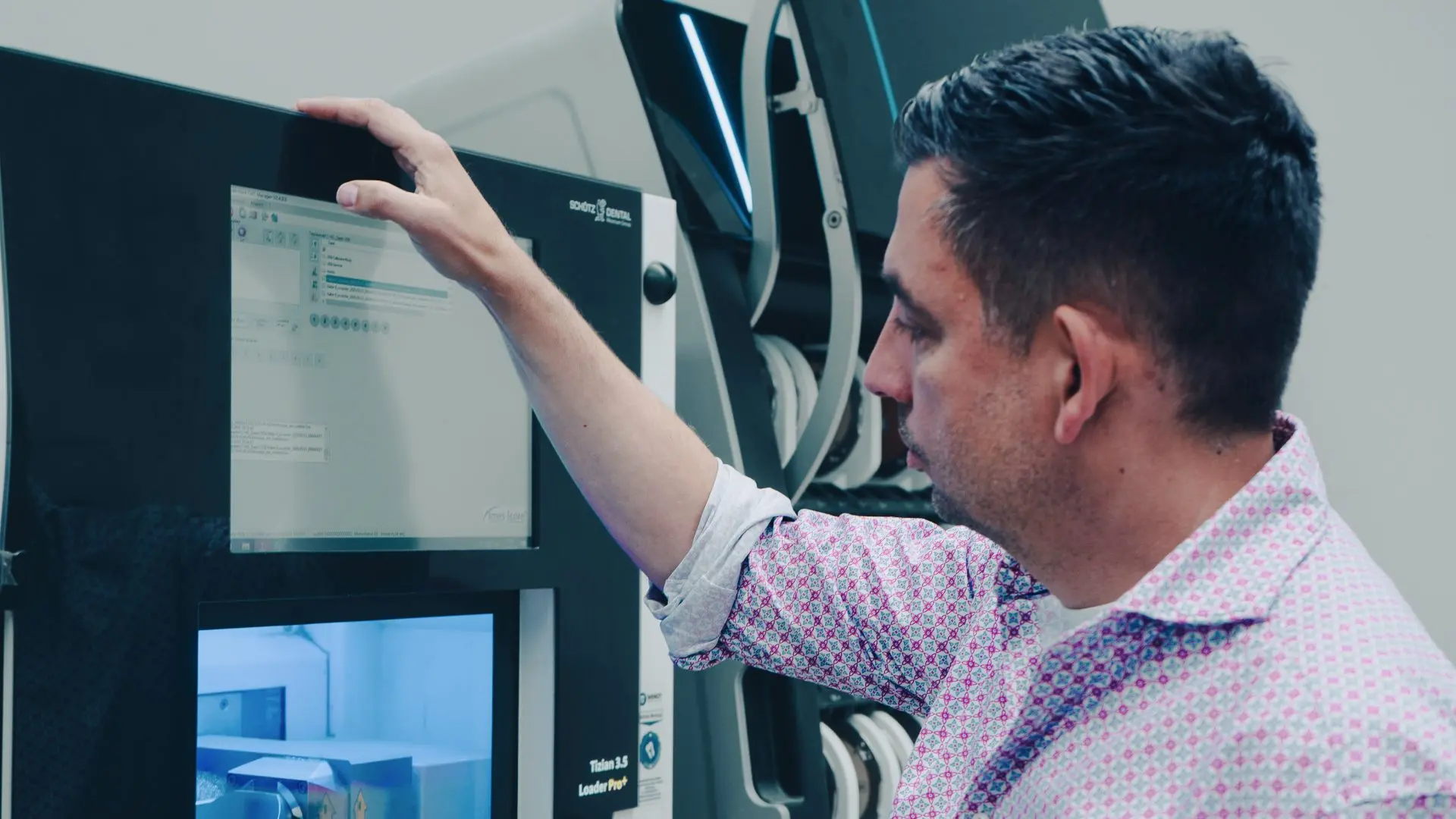

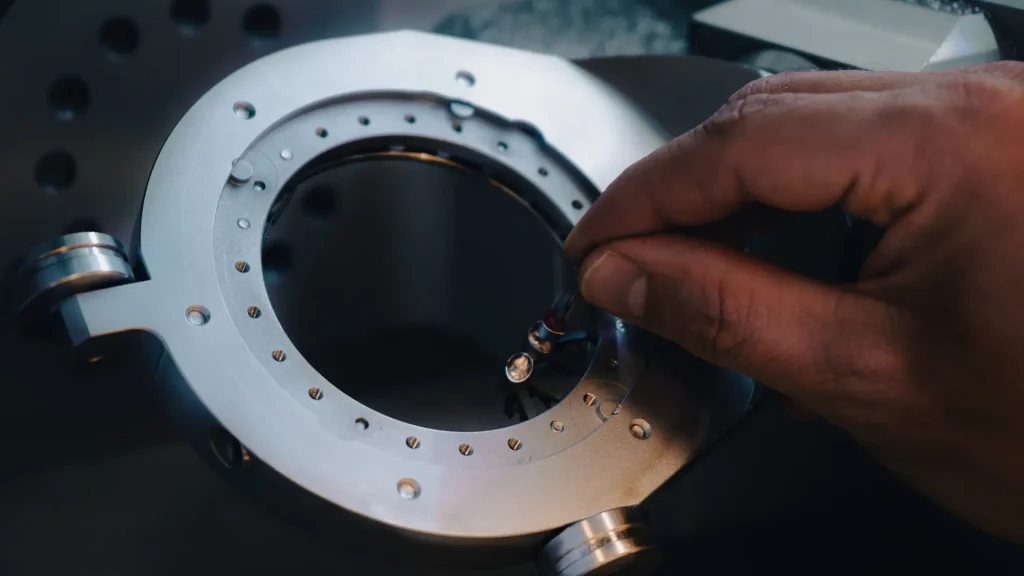

– The component is separated from the build plate after the heat treatment and clamped into the specially designed Make&Mill fixture for the milling process. This holder is then inserted into the milling machine (e.g., T5 from Siladent). Thanks to the pre-calibrated zero-point system, the defined surfaces and cavities can be milled with the highest precision.
– This results in a precisely fitting dental restoration that meets the highest functional and aesthetic standards.
Result:
- Maximum precision through the combination of additive and subtractive manufacturing
- Time savings in the production of complex secondary structures
- Material efficiency by building up only where necessary
- Optimal integration into existing digital workflows
Conclusion
The hybrid manufacturing approach with 2Create and Make&Mill enables Ewert Zahntechnik to produce high-quality telescopic restorations at an industrial standard. The system offers not only flexibility and precision but also a sustainable and economical advantage over purely conventional or purely additive methods.
We look forward continuing our partnership. 🚀
High-Performance Metal 3D Printers

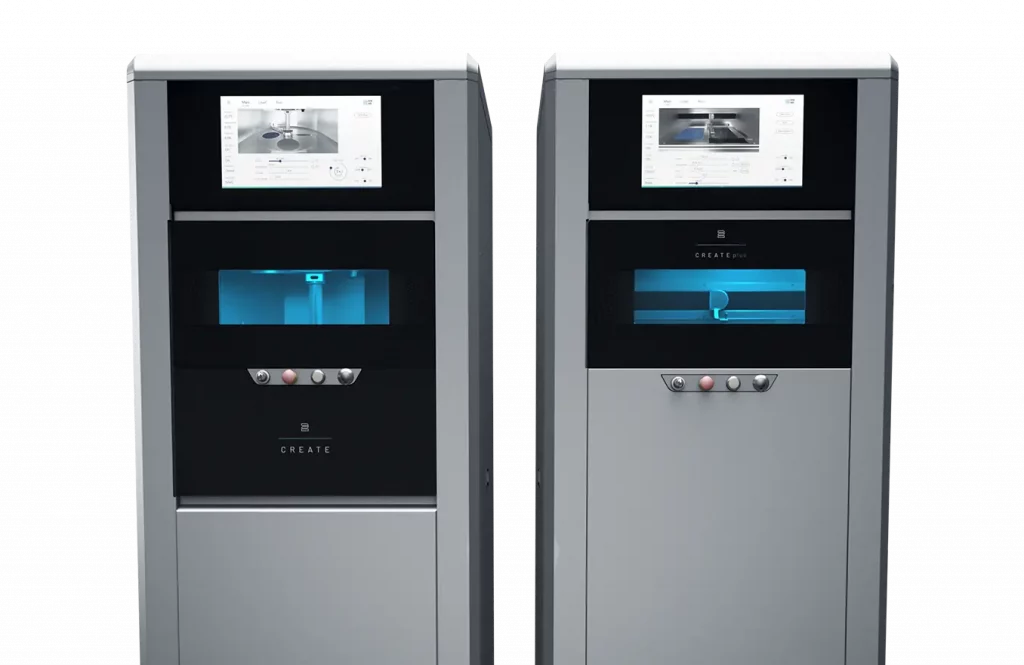

The 2Create series – including 2Create/2Create Plus and 2Create Desktop – are versatile metal 3D printing solutions tailored for various industries.
Success Story with Creacam
Discover how Creacam has redefined efficiency in dental production with our 2Create metal 3D printer, while cutting costs and ensuring consistency.
