Sieving System
2Sieve
Ultrasonic Metal Powder Sieving
Efficient Powder Handling and Recycling.
2Sieve enables safe and efficient metal powder sieving, ensuring consistent quality even when reusing powder. Operating under argon, it also allows the secure handling of reactive materials such as titanium.
Safe
Its ability to operate under argon or nitrogen ensures the safe sieving of reactive materials such as titanium.
Simple
Streamlined, user-friendly solution for powder handling, combining simplicity with reliable performance.
Efficient
Cost-effective solution for powder handling, reducing material waste and operational expenses.

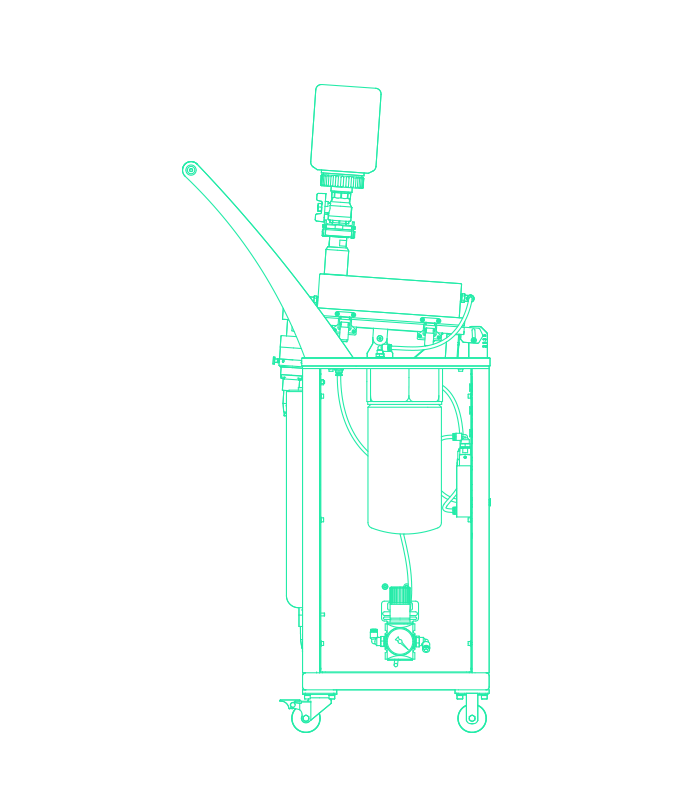

Sieving system
2Sieve
Metal Powder Sieving
Ultrasonic Metal Powder Sieving System
Optimize your metal powder quality with 2Sieve to ensure consistent, high-precision 3D printing results.
- Compact Design
- Integrated HEPA filter for maximum Safety
- Safe Screening under Protective Gasext goes here
- Collection Containers fit directly into the 2Create & 2Create Plus
- Safe, Simple, Efficient
Technical Data
Mesh
63 μm
Sieving Capacity
approx. 1 kg per 30 min
Output Frequency
33-37 kHz
Electrical Connection
115 / 230 VAC; ~50/60 Hz
Weight
70 kg
Dimensions (W × D × H)
355 × 450 × 1250 mm

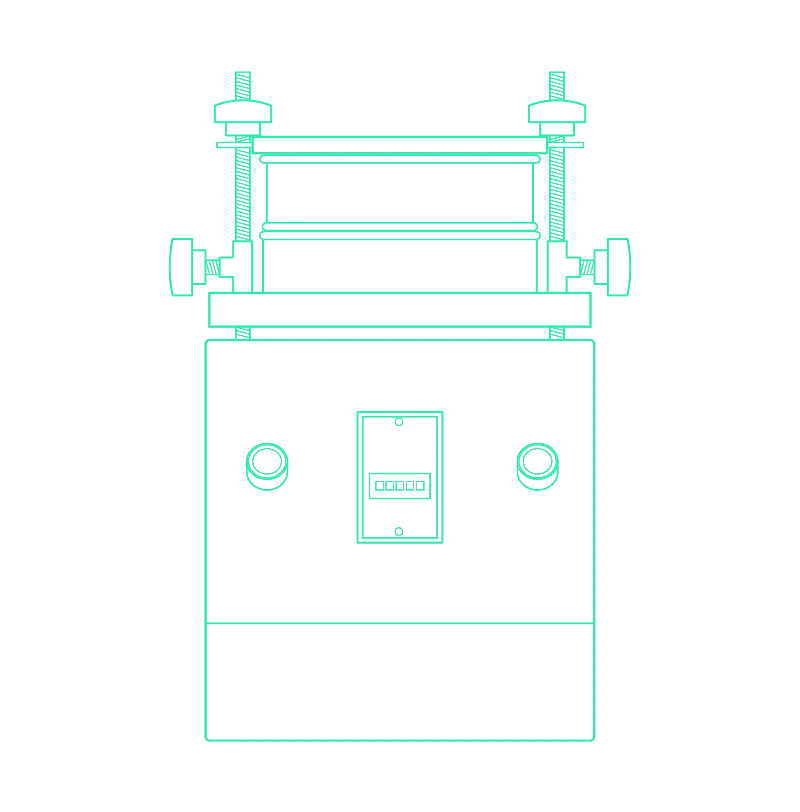

Basic Sieving system
2Sieve Basic
Metal Powder Sieving
The Compact Sieving Solution for Your AM Workflow
The 2Sieve Basic is our entry-level solution for simple and efficient metal powder sieving. Note: Not suitable for titanium or other reactive materials!
- Compact Design
- Safe, Simple, Efficient
Technical Data
Diameter
200 mm
Mesh
63 μm
Rotation Speed
1420
Noise
≤50 dB
Amplitude
≤5 mm
Power
0.125 kw
Voltage
220V, 50 Hz
Weight
40 kg
Dimensions (W × D × H)
380 × 470 × 620 mm

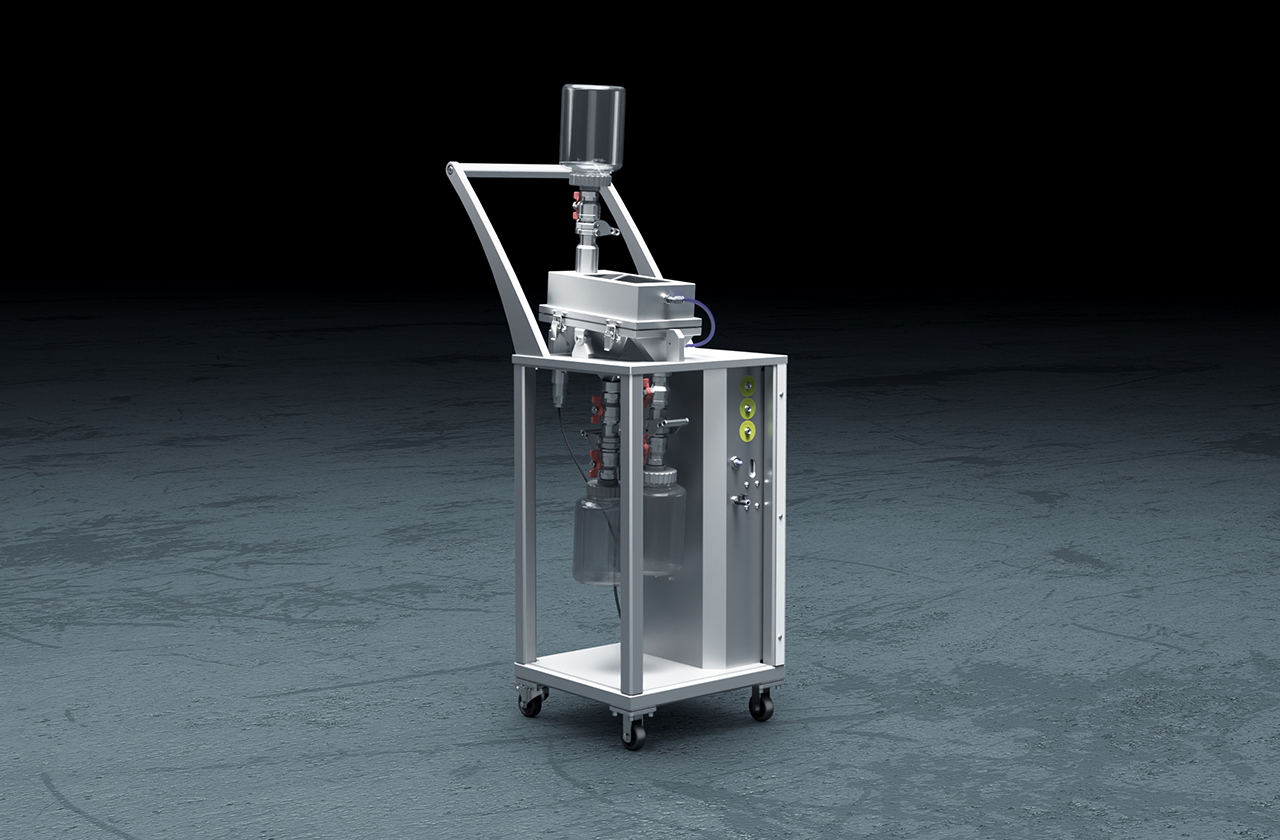

The Compact Ultrasonic Metal Powder Sieving System 2Sieve
The Sieving System for Applications Requiring High Powder Quality
Whether it is titanium, cobalt-chrome, aluminum or any alloy, the metal powder used in the additive manufacturing process must have a very narrow size distribution.
For the 3D metal printing process (Selective Laser Melting) the range of powder distribution is around 15 to 45 micrometers. The metal powder sieving system 2Sieve helps you to optimize the powder quality to achieve optimal printing results.
Zero Waste
Never waste valuable metal powder after 3D metal printing again. With the sieiving system 2Sieve you can clean up your powder in only five minutes and reduce your resource costs.
High-Quality Powder for Optimal Printing
Safe Sieving Under Protective Gas
Operating under argon or nitrogen, 2Sieve is suitable for reactive powders like titanium or aluminum – safe, efficient, and low-dust.

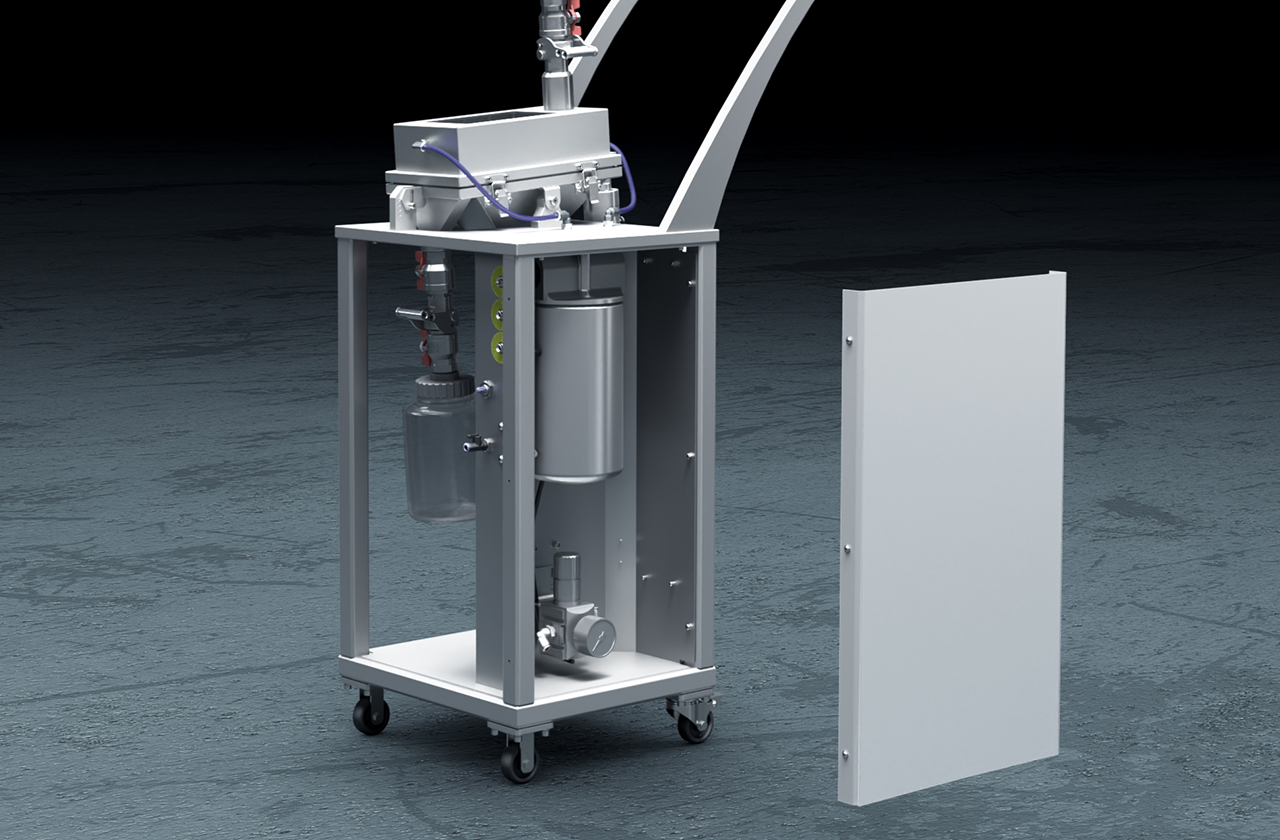

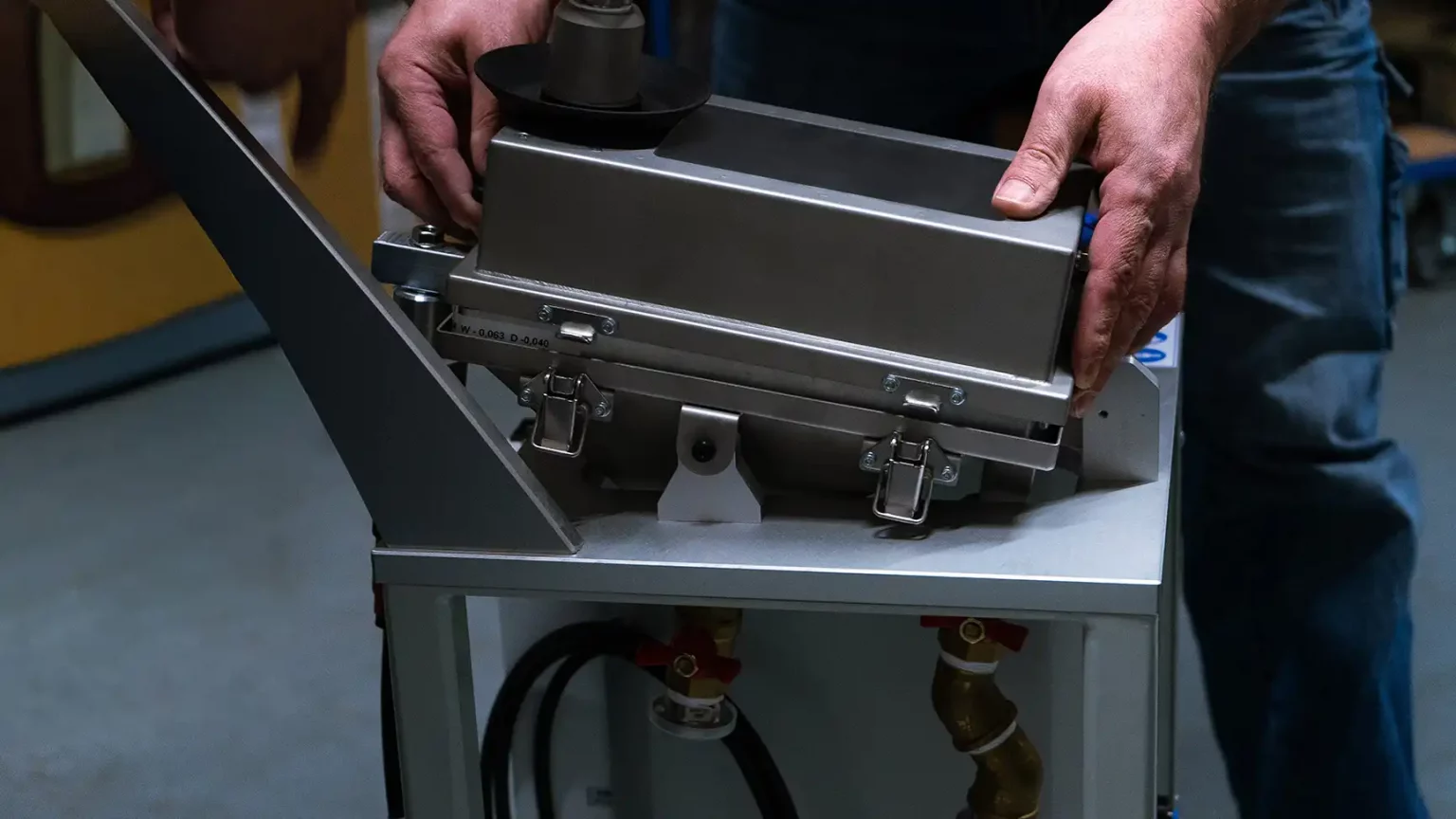

Safe, Compact, and User-Friendly
Thanks to its compact design, the collection containers fit directly into the 2Create 3D printers. Easy handling simplifies operation, while the built-in HEPA filter ensures maximum safety.

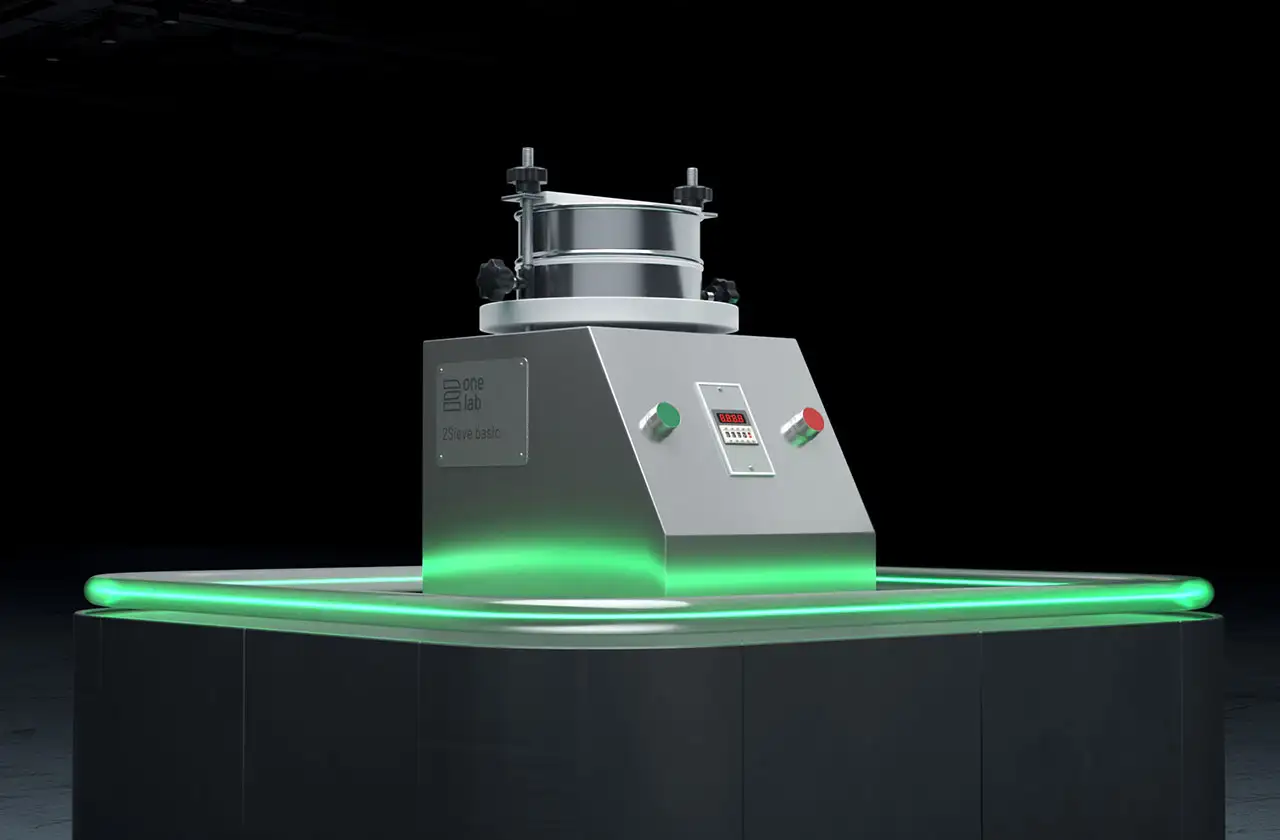

2Sieve Basic
The Compact Sieving Solution for Your AM Workflow
The 2Sieve Basic is our entry-level solution for simple and efficient metal powder sieving – seamlessly integrated into the 2onelab workflow. Up to 5 kg of powder can be processed in just 10 minutes – cleanly, quietly, and effectively.
Ideal for materials such as stainless steel and CoCr, the 2Sieve Basic is the perfect choice for those starting out in additive manufacturing.
The Ultrasonic Sieving Technology
Efficient Metal Powder Sieving
The powder is dosed onto the slightly inclined mesh via a valve. Ultrasonic vibrations help fine particles pass through into the collection container, while larger particles fall into the waste container.
FAQ - 2Sieve
Metal Powder Sieving
Ensure stable and reproducible 3D printing results by maintaining consistent metal powder quality.
Learn how 2Sieve supports your process in the FaQ`s below.
What Is the 2Sieve System?
2Sieve is a compact ultrasonic sieving machine for metal powder sieving in additive manufacturing. It removes coarse particles and contaminants from used powder, ensuring safe and consistent quality for reuse.
What Are the Advantages of 2Sieve?
- Gentle ultrasonic sieving preserves particle shape and flow
- Inert gas sieving protects reactive powders
- Compact and compatible with 2Create printers
- Efficient (≈1 kg/30 min) and reduces waste
- Ensures consistent, high-quality prints
- Made in Germany with excellent support
Why Is Sieving important in Metal 3D Printing?
Metal powder sieving removes aggregates and contaminants from reused powder, ensuring consistent quality, smooth flow, and defect-free LPBF prints—critical for cost-effective metal 3D printing.
Which Metal Powders Are Compatible?
2Sieve works with a wide range of metal powders, both reactive and non-reactive, such as titanium, cobalt-chromium, and aluminum.
Can 2Sieve Be Used for Reactive Metal Powders Like Titanium or Aluminum?
Yes — 2Sieve is designed to operate under a protective gas atmosphere (such as argon or nitrogen), which prevents oxidation or reactions with ambient air. This makes the system suitable for reactive powders like titanium and aluminum.
How Does the Metal Sieving Process Work?
How Does 2Sieve Ensure Safe and Controlled Metal Powder Sieving?
How Often Should the Metal Powder Be Sieved?
How Does 2Sieve Fit into the 2onelab Metal 3D Printing Workflow?
2Sieve then gently sieves and cleans the powder, removing coarse particles and contaminants to ensure reusable, high-quality powder and consistent print results.
Still Have Questions?
Looking for the Right Solution for Your Metal 3D Printing Process?
We Cover the Entire Metal 3D Printing Workflow With Our Products
With our 3D printing equipment, we enhance our metal 3D printers to maximize performance and enhance powder handling and post-processing, ensuring a seamless workflow.
